C7 Industrial Engines Disassembly and Assembly – Electric Starting Motor – Remove and Install

Removal Procedure

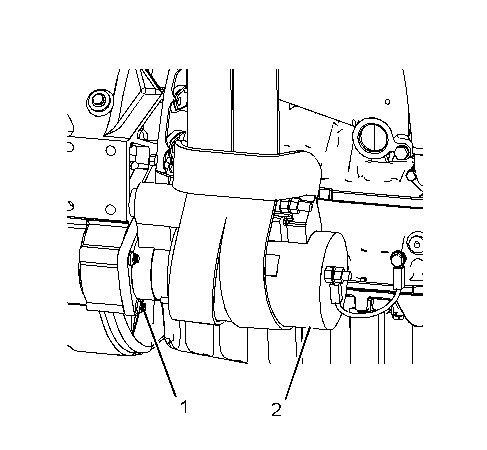

1. Place an index mark on all of the harness assemblies. Disconnect the harness assemblies from electric starting motor (2) .

2. Fasten a suitable lifting device to electric starting motor (2). The weight of electric starting motor (2) is approximately 24 kg (53 lb).

3. Remove bolts (1) and the washers.

4. Remove electric starting motor (2) and the gasket from the flywheel housing.

Installation Procedure

1. Fasten a suitable lifting device to electric starting motor (2). The weight of electric starting motor (2) is approximately 24 kg (53 lb).

2. Position the gasket and electric starting motor (2) in the flywheel housing. Install bolts (1) and the washers.

3. Connect the harness assemblies to electric starting motor (2). Refer to Specifications, “Electric Starting Motor”.
