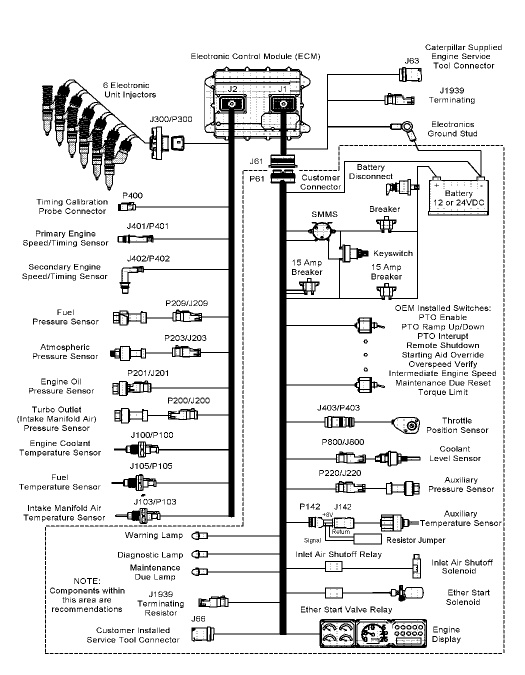

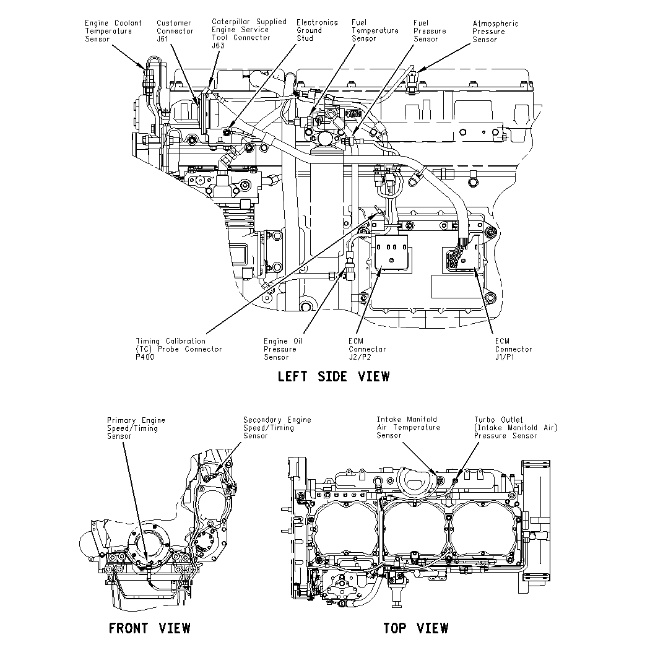

| Connector |
Function |
| J1/P1 |
ECM Connector (70-Pin Engine Harness) |
| J2/P2 |
ECM Connector (70-Pin Engine Harness) |
| J61/P61 |
Customer Connector (40-Pin Connector) |
| J63/P63 |
Service Tool Connector (9-Pin Connector) |
| J66/P66 |
Customer Supplied Service Tool Connector (9-Pin Connector) |
| J100/P100 |
Coolant Temperature Sensor (2-Pin Connector) |
| J103/P103 |
Intake Manifold Air Temperature Sensor (2-Pin Connector) |
| J105/P105 |
Fuel Temperature Sensor (2-Pin Connector) |
| J142/P142 |
Auxiliary Temperature Sensor |
| J200/P200 |
Turbocharger Outlet Pressure Sensor (3-Pin Connector) |
| J201/P201 |
Engine Oil Pressure Sensor (3-Pin Connector) |
| J203/P203 |
Atmospheric Pressure Sensor (3-Pin Connector) |
| J209/P209 |
Fuel Pressure Sensor |
| J220/P220 |
Auxiliary Pressure Sensor |
| J300/P300 |
Injector Solenoid Harness (12-Pin Connector) |
| J400/P400 |
Engine Timing Calibration Probe (2-Pin Connector) |
| J401/P401 |
Primary Engine Speed/Timing Sensor (Crankshaft) (2-Pin Connector) |
| J402/P402 |
Secondary Engine Speed/Timing Sensor (Camshaft) (2-Pin Connector) |
| J403/P403 |
Throttle Position Sensor (3-Pin Connector) |
| J800/P800 |
Engine Coolant Level Sensor |
