26SI Series Alternator – Air Starting Motor

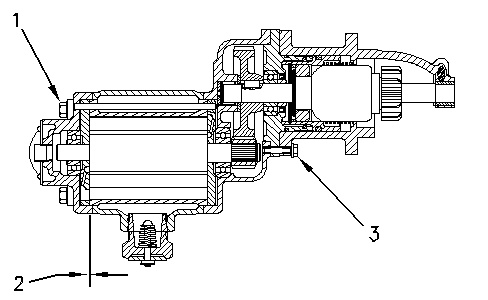

Illustration 1 g00282864

Typical example

105-5080 Air Starting Motor

(1) Torque for bolts … 30 ± 5 N·m (22 ± 5 lb ft)

(2) Clearance between the rotor and the end plate … 0.81 mm (0.032 inch)

(3) Torque for bolts … 11.3 N·m (8 lb ft)
