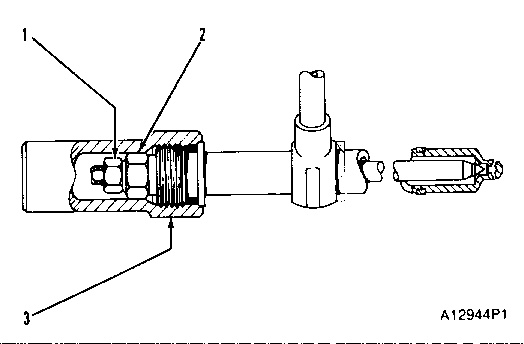

122-9007
(1) Torque for valve lift locknut … 4 to 5 N·m (35 to 45 lb in)
(2) Torque for pressure screw locknut … 8.0 to 9.1 N·m (70 to 80 lb in)
(3) Torque for cap … 12 to 14 N·m (110 to 120 lb in)

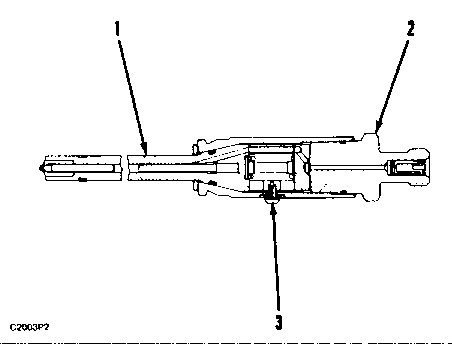

4W7016, 133-3896
(1) Body assembly.
(2) Adapter assembly. Tighten to … 72 ± 5 N·m (50 ± 5 lb ft)
(3) Bleed screw. Tighten to … 2.7 ± 0.8 N·m (24 ± 7 lb in)
The fuel injection nozzle cannot be disassembled and no adjustments can be made.
