3116 and 3126 Truck Engines Turbocharger – Remove

Removal Procedure


1.Remove bolts (1) and the gasket. Remove bolts (3) and tube assembly (2) from the turbocharger.

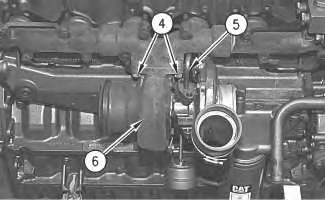

2.Remove the bolts and the gasket in order to disconnect oil supply tube assembly (5) from the turbocharger.

3.Remove nuts (4), turbocharger (6), and the gasket from the exhaust manifold.
