C7 Industrial Engines Specifications – Flywheel

Note: Refer to Systems Operation/Testing and Adjusting for the correct method of inspecting the flywheel.

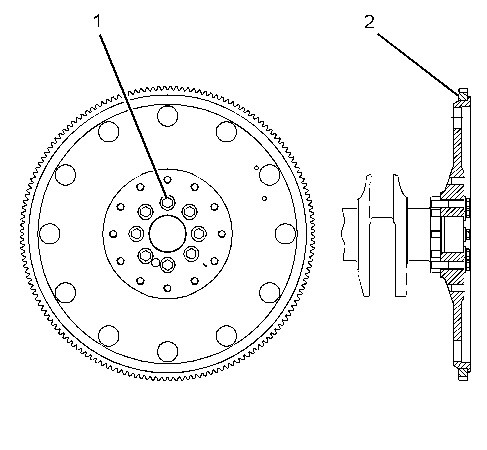

(1) Torque for the eight locking bolts … 120 ± 20 N·m (90 ± 15 lb ft)

(2) Use the following procedure to install the gear:



  1. Install the gear.



  1. Face the part number on the gear toward the engine block.



  1. Install the gear against the shoulder.
