Electric

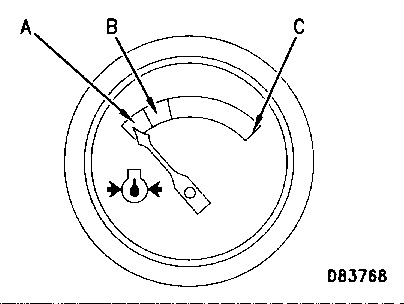

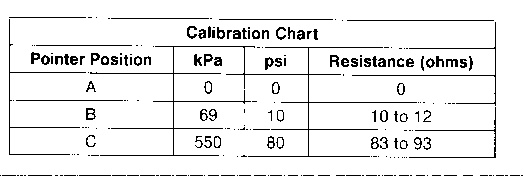

1W7143 Indicator 24V; Use With 302010 Sending Unit
6N0673 Indicator 24V; Use With 302010 Sending Unit

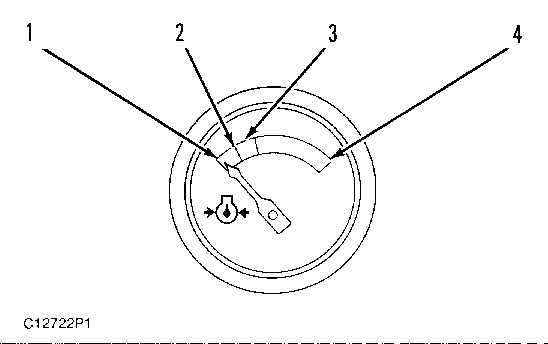

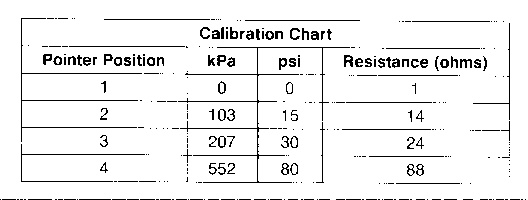

2N0781 Indicator 12V; Use With 2N0782 Sending Unit

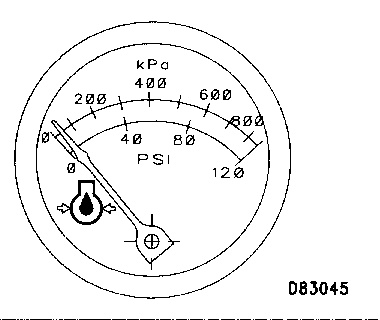

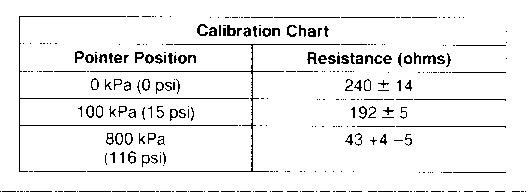

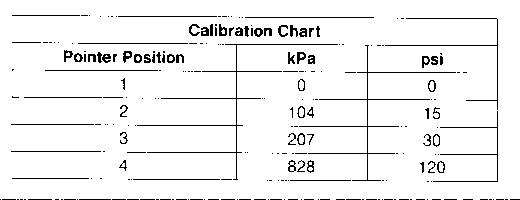

7C0192 Indicator 12V, Use With 7W2938 And 105-8056 Sending Unit
Range … 0 to 800 kPa (0 to 116 psi)
Test voltage … 13.8 ± 0.3V
Tolerance … ±0.8 mm (.03 in)

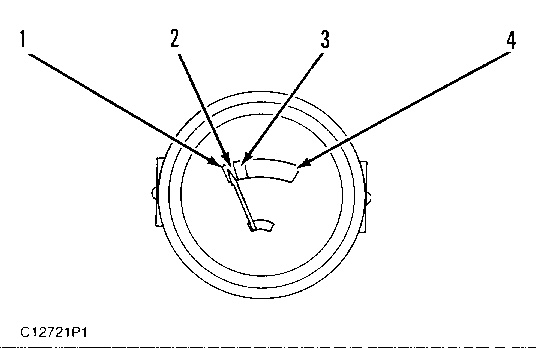

NOTE: Measure tolerance from the end of the pointer to the centerline of the mark on the face of the indicator.

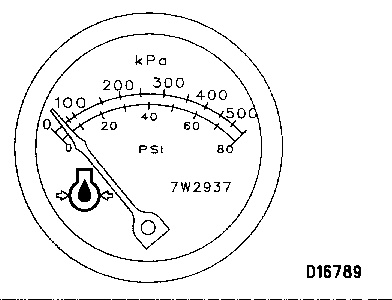

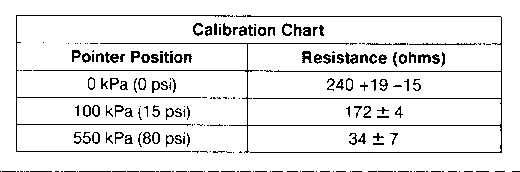

7W2937 Indicator, Use With 9X1124 Sending Unit
Range … 0 to 550 kPa (0 to 80 psi)
Test voltage … 27.2 ± 0.3V
Tolerance … ±0.8 mm (.03 in)
