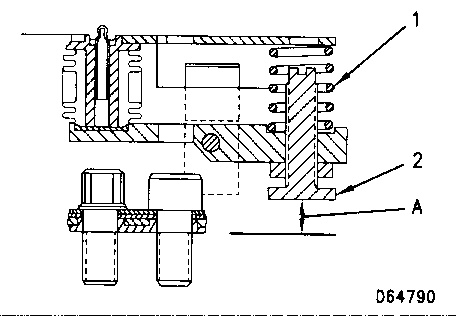

3208 INDUSTRIAL ENGINE – Fuel Temperature Compensating Torque Control Group

(1) 8N5083 Spring:

Length under test force … 14.40 mm (.567 in)

Test force … 95.2 ± 6.7 N (21.39 ± 1.51 lb)

Free length after test … 21.21 mm (.835 in)

Outside diameter … 11.76 mm (.463 in)

(2) Screw. Distance (A) between screw (2) and mounting surface … 3.90 ± 0.25 mm (.154 ± .010 in)
