3208 INDUSTRIAL ENGINE – Fuel Filter Base

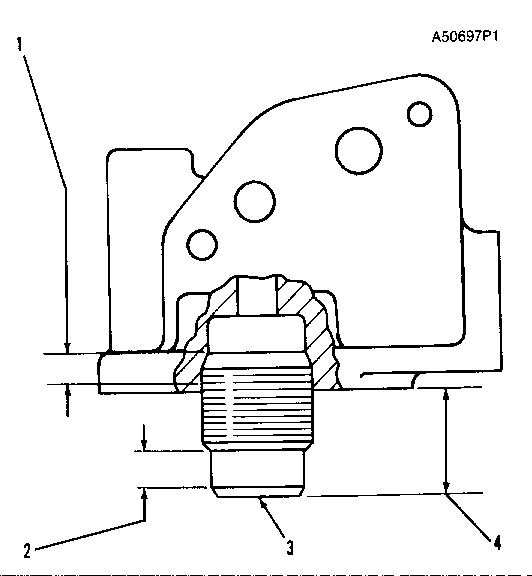

(1) Put 9S3263 Thread Lock Compound on the threads of the tapered end of the stud to a distance of … 7.6 ± 1.5 mm (.30 ± .06 in)

(2) Sealing surface of stud.

NOTE: Do not damage this surface.

(3) Torque for stud … 68 ± 7 N·m (50 ± 5 lb ft)

(4) Distance from sealing surface of base to end of stud … 24.6 ± 1.3 mm (.97 ± .05 in)
