3100 HEUI Troubleshooting Service Brake #2 Switch Circuit Test

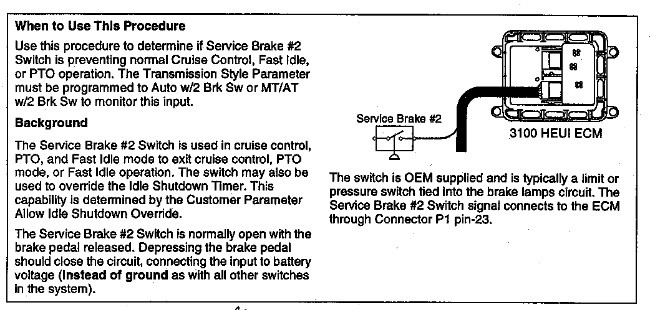

System Operation

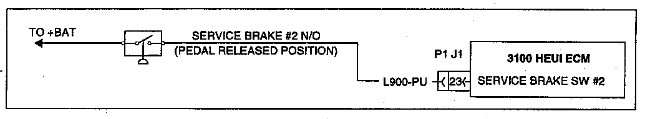

Schematic – 3126

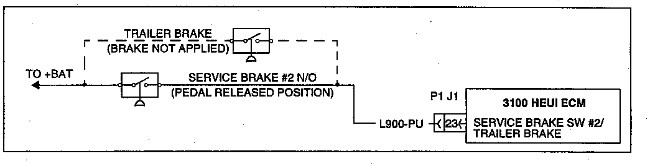

Schematic – 3116

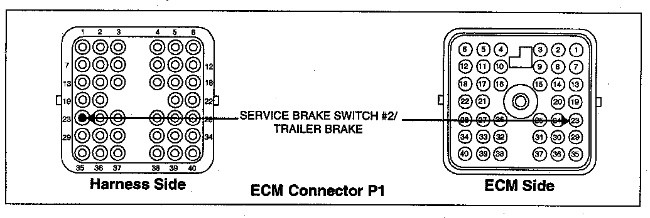

ECM Pin Locations

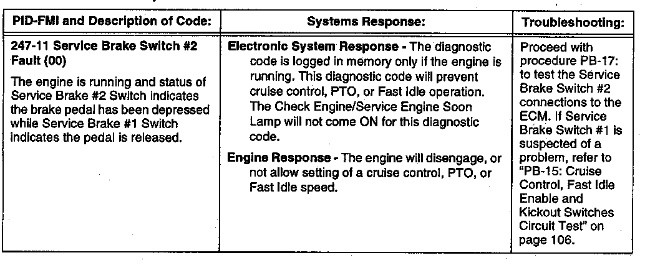

Diagnostic Codes

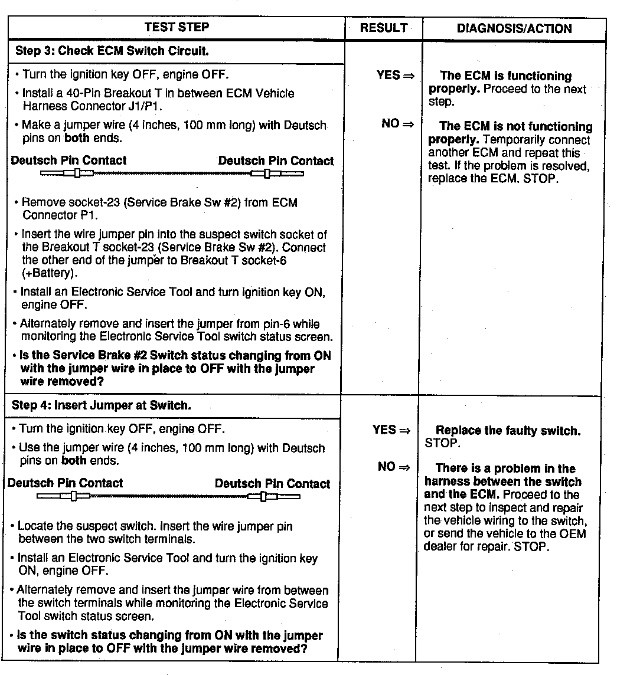

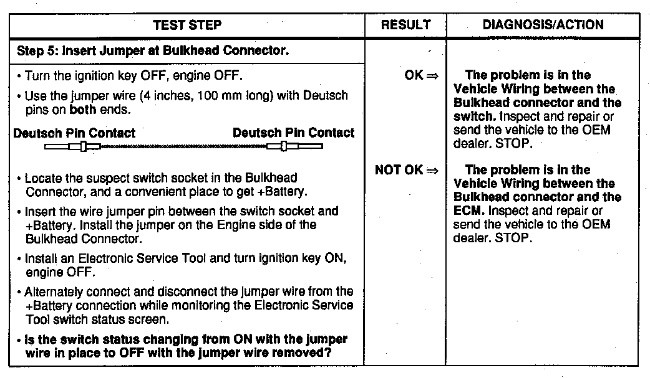

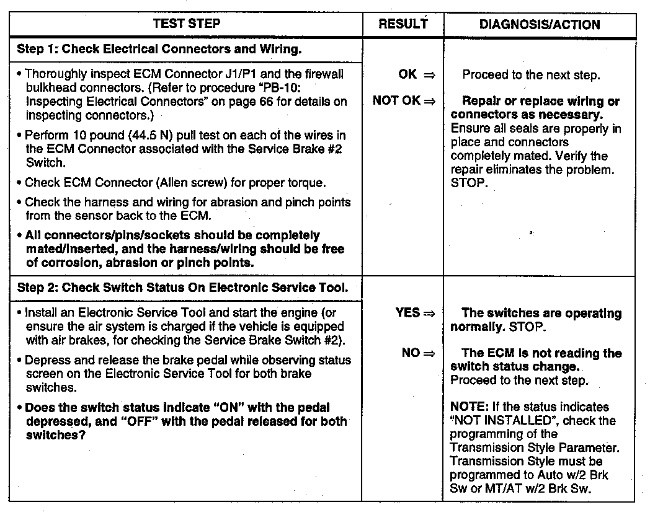

Functional Test
