Introduction
Note: Caterpillar recommends using air in low pressure and high volume to clean air filters.
The following information is found in this guideline.
Reusability of filters
Cleaning indicators
Inspection and cleaning methods
Correct packaging and storage
Call (309) 636-8500 for additional information on your filter.
PowerCore is a registered trademark of Donaldson Company Inc.
Tooling and Equipment
Contact the Caterpillar Service Technology Group for questions regarding tooling and equipment.
Caterpillar Service Technology Group
501 S.W. Jefferson Avenue
Peoria, Illinois 61630
1-800-542-8665 (USA)
1-800-541-8665 (Illinois)
1-800-523-8665 (Canada)
1-309-675-6618 (Fax)
Types of Air Filter Elements
Air Filters Which Can Be Cleaned
Illustrations 1, 2, 3, and 4 show the primary elements of the air filters that can be cleaned until a new filter is installed. These filters have a folded paper design which can withstand cleaning.
Note: Air filters with axial seals and radial seals can be cleaned.
Illustration 1 g01158809
Nomenclature of panel type air filters which can be cleaned.
(1) Gasket
(2) Metal screen
(3) Dirty side
(4) Clean side

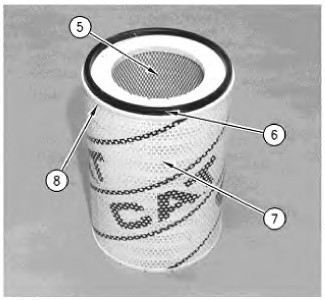

Illustration 2 g01158816
A typical example of an air filter element with an axial seal which can be cleaned.
(5) Clean side
(6) Axial seal
(7) Metal screen
(8) End cap
Illustration 3 g01158817
A typical example of an air filter element with a radial seal.
Illustration 4 g01158818
An example of a PowerCore air filter element with a radial seal.
Air Filters Which Cannot Be Cleaned
There are some types of air filters that cannot be cleaned, such as secondary air filters. The following air filters cannot be cleaned and should be replaced:
Secondary air filters
Filters with damage to the filter paper
Rebuilt air filters
Standby filters for engines
Air filters for fire pumps
Illustration 5 g01158824
Secondary air filters cannot be washed.
Is it safe to remove and clean engine air filter for CAT 3616 LE series while in running condition or the engine should be shutdown prior to remove air filter. Filter cleaning is usually carried out in 0.5 hours.
It is strictly prohibited removing of air filter while engine is running.it is dangerous as well as bad for engine to suck debris and dirt which will harm engine
