Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.
|
|
|
|

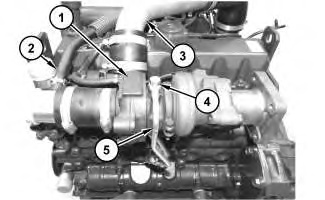

| Illustration 1 | g02782212 |
- Disconnect hose assembly (2) from turbocharger (1) .
- Remove tube assembly (3) from turbocharger (1) .
- Remove bolt (4) and the four lower bolts. Remove tube assemblies (5) and the gasket and the O-ring seal.
|
|
|
|

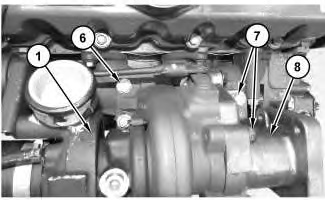

| Illustration 2 | g02782214 |
- Remove five bolts (7) and housing (8) and the gasket.
- Remove four nuts (6) and turbocharger (1) and the gasket.
Table 1
| Required Tools |
| Tool |
Part Number |
Part Description |
Qty |
| A |
- |
Loctite C5A |
1 |
|
|
|
|
| Illustration 3 | g02782214 |
- If necessary, install new gaskets.
- Position the gasket and install turbocharger (1) on the exhaust manifold.
- Position the gasket and install housing (8) on the turbocharger (1) and install three bolts (7) to align turbocharger (1) .
- Apply Tooling (A) to three nuts (6) and install three nuts (6) on turbocharger (1) . Tighten three nuts (6) and remove three bolts (7) and housing (8) .
- Apply Tooling (A) to one nut (6) and install one nut (6) on turbocharger (1) . Tighten one nut (6) .
- Position the gasket and housing (8) . Apply Tooling (A) on bolts (7) and install five bolts (7) and tighten.
|
|
|
|
| Illustration 4 | g02782212 |
- Position tube assemblies (5) and the gasket and the O-ring seal and install four lower bolts and bolt (4) . Tighten bolt (4) to a torque of 16.0 ± 19.0 N·m (11.80 ± 14.01 lb ft).
- Position tube assembly (3) on turbocharger (1) and install the clamps.
- Connect hose assembly (2) on turbocharger (1) .
