C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Inlet Manifold – Remove and Install – C3.3B

Removal Procedure

Start By:

  1. Remove fuel injection pump and governor.
  2. Remove exhaust gas recirculation valve.

Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.

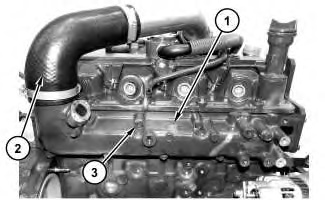

    Illustration 1g02799677

  1. Disconnect hose assembly (2) and relocate.

  1. Remove bolts (3) and remove inlet manifold (1) and the gasket.

Installation Procedure

  1. Install inlet manifold (1) in the reverse order of removal.
