C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Fuel Injection Nozzles

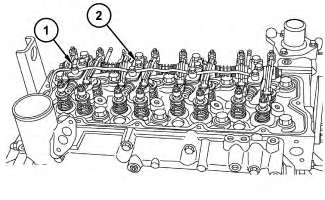

Illustration 1g03006436

(1) Overflow Pipe Retaining Bolt

(2) Nozzle Holder Clamp Bolt

Table 1
Tightening torque     Overflow pipe retaining bolt     9.81 to 11.2 N·m (7.24 to 8.31 lb ft)
Nozzle holder clamp bolt 24 to 27 N·m (18 to 20 lb ft)
