C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Flywheel

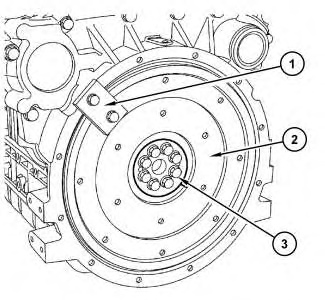

Illustration 1g03002197

(1) Stopper

(2) Flywheel

(3) Flywheel Mounting Bolts

Note: Apply engine oil to the threads of the flywheel mounting bolts (3) before assembly.

Table 1
Tightening torque     Flywheel bolts     98.1 to 107 N·m (72.4 to 79.5 lb ft)
