C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Fan Drive

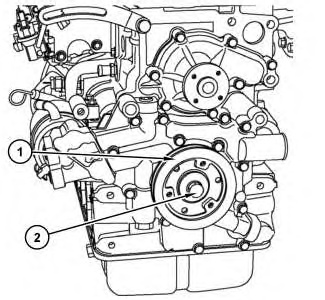

Illustration 1g02995656

(1) Fan Drive Pulley

(2) Crankshaft Bolt

Note: Apply engine oil to the threads of the crankshaft bolt before assembly.

Table 1
Tightening torque     Crankshaft bolt     255 to 274 N·m (188 to 202 lb ft)
