C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Exhaust Manifold – Remove and Install – C3.3B

Removal Procedure

Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     4C-5599     Anti-Seize Compound     1

Start By:

  1. Remove the turbocharger.

Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.

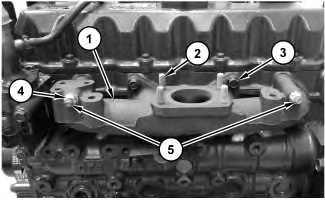

    Illustration 1g02770916

  1. Remove two locknuts (4) and six bolts (3) .

  1. Remove exhaust manifold (1) and the gasket.

  1. If necessary, remove studs (2) and (5) .

Installation Procedure

  1. Install exhaust manifold (1) in the reverse order of removal.

    1. If necessary, apply Tooling (A) on the threads of studs (5) and (2) .

    1. Apply Tooling (A) on the threads of locknuts (4) and the threads of bolts (3) .
