C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Exhaust Gas Recirculation Valve – Disassemble – C3.3B Tier 4 Interim/Stage 3A

Disassembly Procedure

Start By:

1. Remove exhaust gas recirculation valve and cooler assembly.

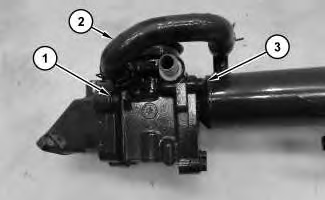

Illustration 1	g02822939

1. Disconnect hose (2) . Remove bolts (1) and (3) .

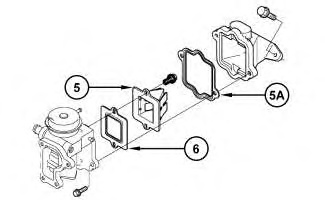

Illustration 2	g02861376

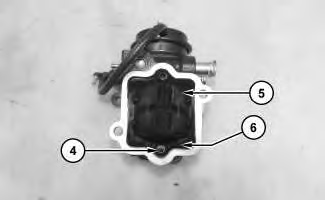

Illustration 3	g02823856

2. Remove bolts (4) , reed valve assembly (5) , gasket (5A) and gasket (6) .

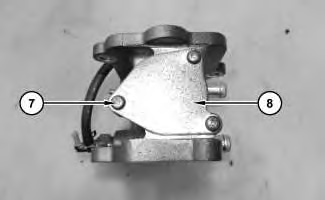

Illustration 4	g02824060

3. Remove screws (7) and cover (8) .
