C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Engine Oil Pan – Remove and Install

Removal Procedure

Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     -     LOCTITE 38364 Flange Sealant     1

Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.

  1. Refer to Operation and Maintenance Manual, "Engine Oil and Filter - Change" for the proper draining and filling procedures.

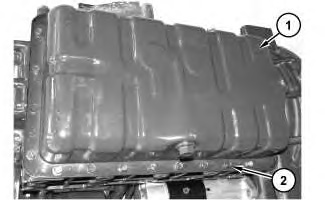

    Illustration 1g02797578

  1. Remove bolts (2) and remove oil pan (1) .

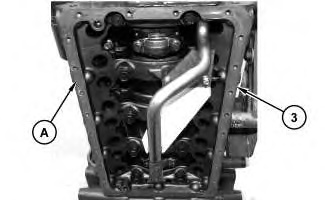

    Illustration 2g02797579

  1. Remove Tooling (A) from oil pan (1) and cylinder block (3) surfaces.

Installation Procedure

  1. Install oil pan (1) in the reverse order of removal.

    1. Apply Tooling (A) to cylinder block (3) surface.
