C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Engine Oil Cooler

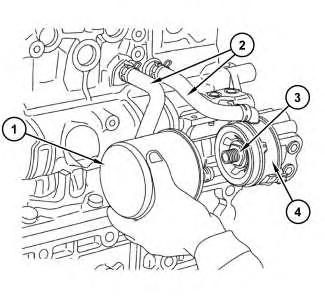

Illustration 1	g02995640
(1) Oil Filter (2) Coolant Lines (3) Oil Cooler Stud (4) Oil Cooler

Table 1
Tightening torque	Oil cooler joint stud	C2.6 - 64 to 73 N·m (47 to 54 lb ft) C3.3B - 40 to 44 N·m (29 to 32 lb ft)
