C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Crankshaft Rear Seal and Wear Sleeve – Install – Includes Crankshaft Gear

Installation Procedure

Table 1
Required Tools
Tool     Part Number     Part Description     Qty
A     390-1146     Crankshaft Rear Seal and Wear Sleeve Driver  (1)     1
423-9665 Crank shaft Rear Seal and Wear Sleeve Driver (2)     1
( 1 ) Used for the C3.3B
( 2 ) Used for the C2.6

Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.

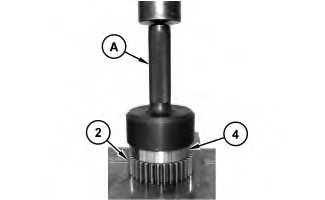

    Illustration 1g02800138

  1. Place wear sleeve (4) on crankshaft gear (2) . Position Tooling (A) . Use a suitable press and install wear sleeve (4) .

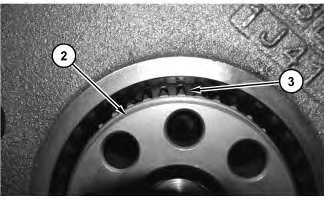

    Illustration 2g02799899

  1. Align crankshaft gear (2) with camshaft gear (3) . Install crankshaft gear (2) into the flywheel housing.

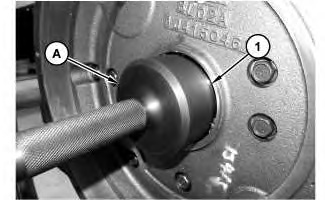

    Illustration 3g02800140

  1. Apply clean engine oil on the lip of crankshaft rear seal (1) . Use Tooling (A) in order to install crankshaft rear seal (1) .

End By: Install the flywheel.
