C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Camshaft

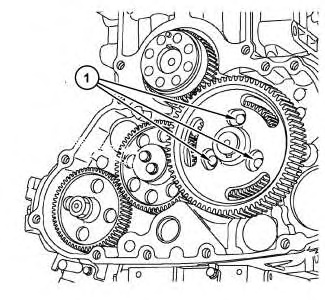

Side Clearance of Camshaft

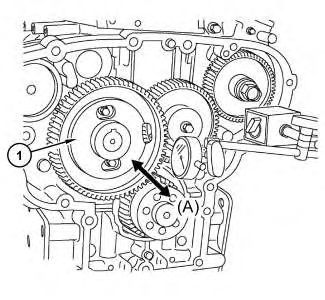

Illustration 2	g03006676
(A) Side Clearance of Camshaft (2) Camshaft Gear

1. Set a dial indicator with its tip on the camshaft.

2. Measure the side clearance by moving the camshaft gear to the front and rear.

   Table 2

   Side clearance of camshaft

   Allowable limit

   0.10 mm (0.0039 inch)

3. If the measurement exceeds the allowable limit, replace the camshaft bearing.

Camshaft Alignment

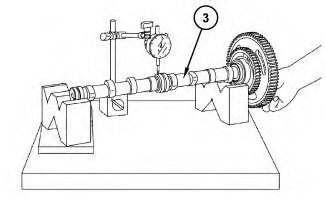

Illustration 3	g03006718
(3) Camshaft

1. Support the camshaft with V block on the surface plate and set a dial indicator with its tip on the intermediate journal at right angle.

2. Rotate the camshaft on the V blocks and get the misalignment (half of the measurement value).

   Table 3

   Camshaft alignment

   Allowable limit

   0.01 mm (0.0004 inch)

3. If the misalignment exceeds the allowable limit, replace the camshaft.

Camshaft Height

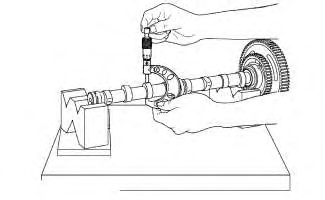

Illustration 4	g03006776

1. Measure the height of the camshaft at its highest point with an outside micrometer.

   Table 4

   Intake and exhaust camshaft height	New	Intake valve	C2.6 - 32.56 mm (1.28189 inch) C3.3B - 37.50 mm (1.476 inch)
   		Exhaust valve	C2.6 - 33.00 mm (1.29921 inch) C3.3B - 37.90 mm (1.492 inch)
   	Allowable limit	Intake valve	C2.6 - 32.10 mm (1.26378 inch) C3.3B - 37.00 mm (1.457 inch)
   		Exhaust valve	C2.6 - 32.50 mm (1.27953 inch) C3.3B - 37.40 mm (1.472 inch)

2. If the measurement is less than the allowable limit, replace the camshaft.

Oil Clearance Between Camshaft Journal and Cylinder Block Bore

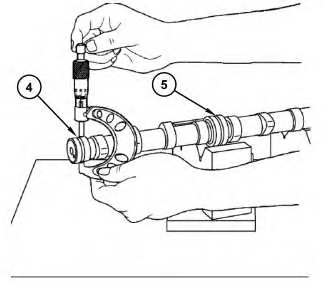

Illustration 5	g03006804
(4) Camshaft Journal 1 (5) Camshaft Journal 2

1. Measure the camshaft journal outside diameter with an outside micrometer.

2. Measure the cylinder block bore inside diameter for camshaft with an inside micrometer.

   Table 5

   Camshaft journal 1 outside diameter	New	34.934 to 34.950 mm (1.3754 to 1.3759 inch)
   Cylinder block bore 1 inside diameter	New	35.000 to 35.025 mm (1.3780 to 1.3789 inch)
   Camshaft journal 2 outside diameter	New	C2.6 - 41.934 to 41.950 mm (1.65094 to 1.65157 inch) C3.3B - 43.934 to 43.950 mm (1.7297 to 1.7303 inch)
   Cylinder block bore 2 inside diameter	New	C2.6 - 42.000 to 42.025 mm (1.65354 to 1.65452 inch) C3.3B - 44.000 to 44.025 mm (1.7323 to 1.7332 inch)

   Table 6

   Oil clearance between camshaft journal and cylinder block bore	New	0.050 to 0.091 mm (0.0020 to 0.0035 inch)
   	Allowable limit	0.15 mm (0.0059 inch)

3. If the clearance exceeds the allowable limit, replace the camshaft.
