C3.3B Tier 4 Interim and EU Stage 3A Engines for Caterpillar Built Machines – Air Cleaner – Remove and Install

Removal Procedure

Hot engine components can cause injury from burns. Before performing maintenance on the engine, allow the engine and the components to cool.

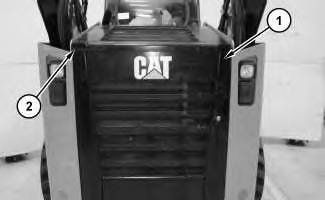

Illustration 1	g02794016

1. Open door assembly (1). Raise radiator and hydraulic oil cooler (2) .

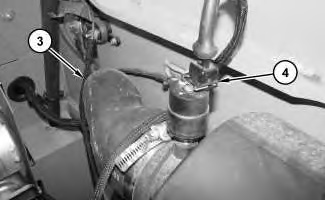

Illustration 2	g02794050

2. Disconnect hose (3) and harness assembly (4) .

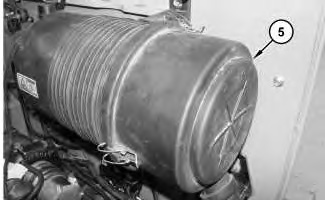

Illustration 3	g02794054

3. Remove cover (5) .

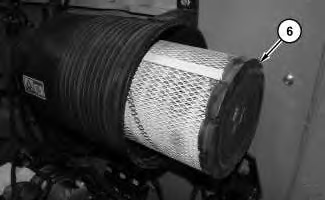

Illustration 4	g02794056

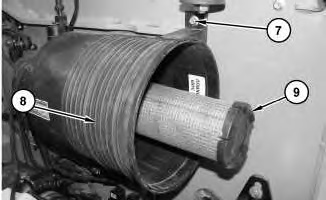

Illustration 5	g03396886

4. Remove filter element (6) and filter element (9) .

5. Remove bolts (7) and air cleaner housing (8) .

Installation Procedure

1. Install air cleaner housing (8) in the reverse order of removal.
