C3.3B – General Information

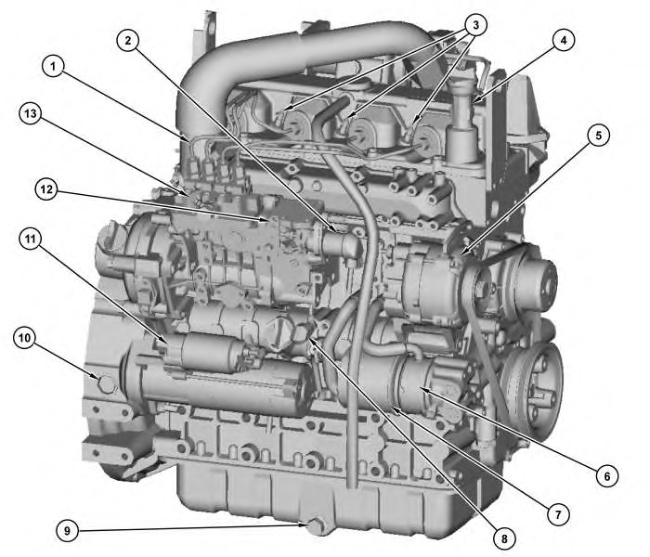

Illustration 1g03330358

Right side view of engine

(1) Fuel injection lines

(2) Stop solenoid

(3) Glow plugs

(4) Oil fill

(5) Alternator

(6) Oil filter cooler

(7) Oil filter

(8) Engine oil pressure switch

(9) Engine oil plug

(10) Timing window

(11) Electric starting motor

(12) Throttle lever

(13) Fuel injection pump

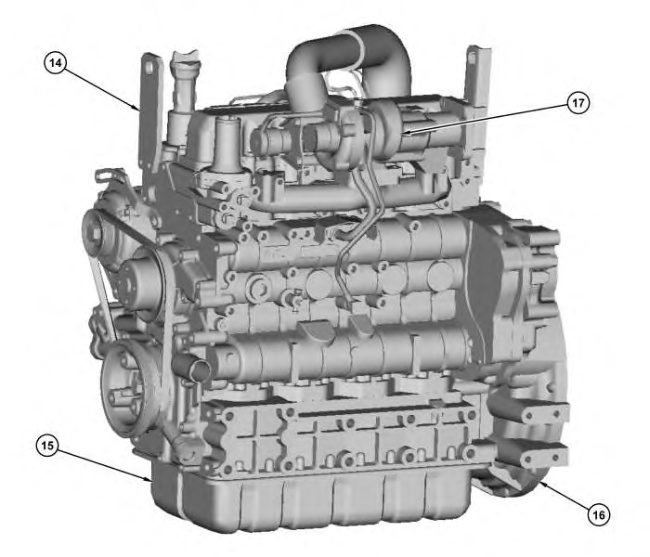

Illustration 2g03330362

Left side view of engine

(14) Lifting eye

(15) Engine oil pan

(16) Flywheel housing

(17) Turbocharger

These engines are vertical type four-cycle diesel engines that utilize advanced features.

These engines have also been designed to reduce transmitted vibrations and radiated sound, resulting in lower noise levels.

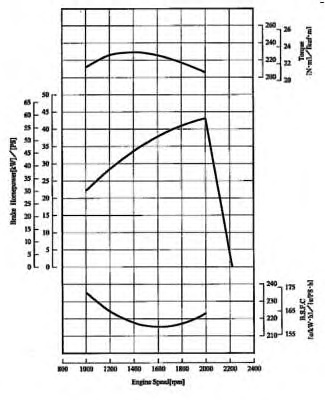

Illustration 3g03331920

C2.6 performance chart

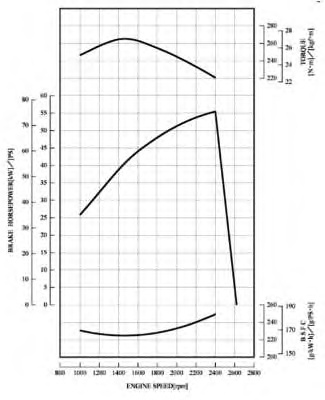

Illustration 4g03333139

C3.3 performance chart

Refer to Illustration 3 for the performance characteristics of this engine.

Engine Identification

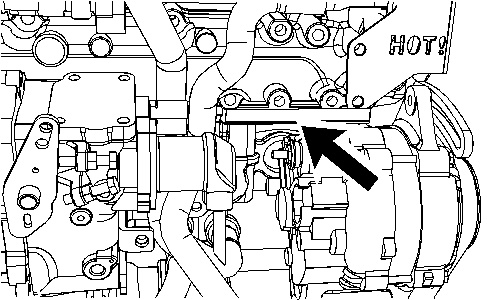

Illustration 5g02924039

Right side of engine

Location of the serial number plate

The engine serial number is an identified number for the engine. This number appears after the engine model number and identifies the month and year of manufacture as below.

Refer to Special Instruction, REHS7930, "Interpretation of Serial Number Format on C1.8, C2.4, C2.6, C3.3B, and C3.8 Engines" for more information on the serial number format.
