C3.3B – Fuel Tank – Remove and Install

Removal Procedure

Start By:

  1. Remove the engine. Refer to Disassembly and Assembly, "Engine - Remove".
  2. Remove the fuel priming pump. Refer to Disassembly and Assembly, "Fuel Priming Pump and Primary Filter (Water Separator) - Remove and Install".

  1. Drain the fuel tank. Refer to Operation and Maintenance Manual, "Fuel Tank Water and Sediment - Drain" for the proper procedure.

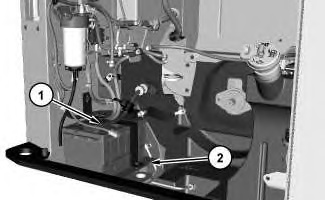

    Illustration 1g03395391

  1. Remove battery (1) and battery mounting plate (2) .

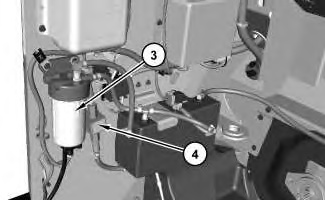

    Illustration 2g03395507

  1. Remove fuel priming pump (4) and fuel water separator (3) .

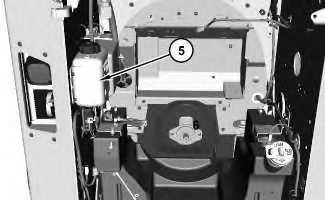

    Illustration 3g03395517

  1. Remove coolant tank (5) .

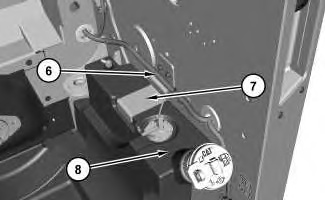

    Illustration 4g03395607

  1. Disconnect harness assembly (6). Remove bracket (7) repeat for opposite side. Remove fuel tank (8) .

Installation Procedure

  1. Install fuel tank (8) in the reverse order of removal.
