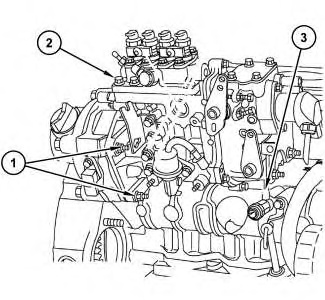

| Illustration 1 | g03006579 |
(1) Injection Pump Unit Mounting Nut (2) Injection Pump Mounting Bolts (3) Lubricating Oil Pipe | |
| Tightening torque | Injection pump unit mounting nut | 18 to 20 N·m (13 to 15 lb ft) |
| Lubricating oil pipe mounting bolt | 16 to 19 N·m (12 to 14 lb ft) | |
| Injection pump mounting bolts | 24 to 27 N·m (18 to 20 lb ft) | |
| Injection pump gear mounting nut | C2.6 - 93.2 to 102 N·m (69 to 75 lb ft) C3.3B - 138 to 158 N·m (102 to 116.5 lb ft) |
