Start By:
- Remove the fuel injection lines.
|
|
|
|
| Illustration 1 | g02804516 |
- Turn engine to the position of top dead center of cylinder 4.
- Remove cover (2) . Remove oil plug cap (1) .
|
|
|
|

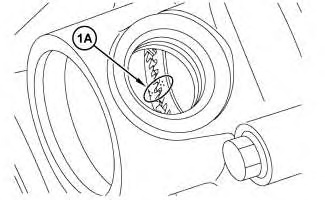

| Illustration 2 | g02858516 |
- Ensure the alignment marks (1A) on the idler gear and fuel injection pump gear align.
|
|
|
|
| Illustration 3 | g02804519 |
- Remove two bolts (5) and two nuts (4) . Remove bracket (3) .
|
|
|
|

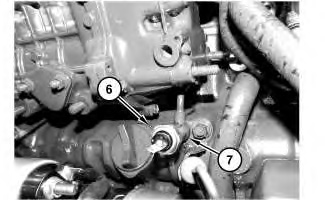

| Illustration 4 | g02804521 |
- Remove the wiring harness assembly for engine oil pressure sensor (6) .
- Remove engine oil pressure sensor (6) along with fitting (7) .
|
|
|
|
| Illustration 5 | g03177759 |
- Remove three nuts (8) from fuel injection pump (10) .
- Remove fuel injection pump (9) and the O-ring seal.
|
|
|
|
| Illustration 6 | g03177762 |
- If necessary, remove studs (10) and position cover (11) to prevent contamination.
