C3.3B – Fuel Injection Pump and Governor – Install – C3.3B

Installation Procedure

Note: Refer to Specification UENR0995 "Engine Design" for non-specified engine Torque Values.

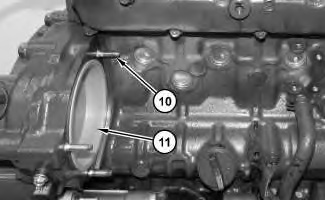

    Illustration 1g03177762

  1. If necessary, install studs (10) and remove cover (11) .

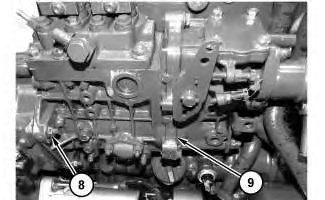

    Illustration 2g03177759

  1. Install the O-ring seal on fuel injection pump and governor (9) . Position fuel injection pump and governor (9) onto the flywheel housing.

  1. Install three nuts (8) to fuel injection pump and governor (9) . Tighten nuts (8) to a torque of 18 to 20 N·m (159 ± 177 lb in).

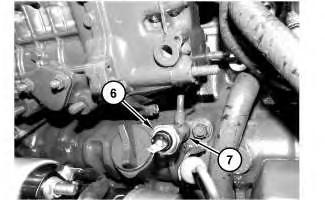

    Illustration 3g03177783

  1. Apply engine oil to threads and torque fitting (7) to a torque of 16 to 19 N·m (12 to 14 lb ft).

  1. Install engine oil pressure sensor (6) and connect the wiring harness assembly. Tighten the engine oil pressure sensor (6) to a torque of 15 to 19 N·m (11 to 14 lb ft).

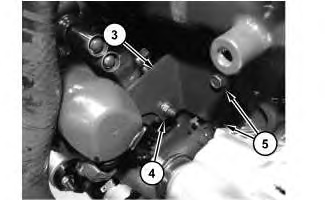

    Illustration 4g02804519

  1. Position bracket (3) and install two nuts (4) and two bolts (5) .

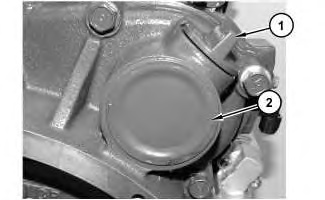

    Illustration 5g02804516

  1. Check the timing marks and install the O-ring seal and oil plug cap (1) . Install the O-ring seal and cover (2) on flywheel housing (3) .

End By: Install the fuel injection lines.
