| Illustration 1 | g03386054 |

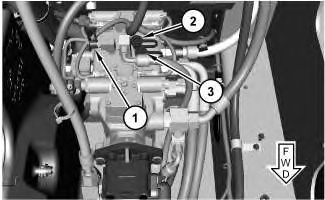

Hydrostatic Transmission Pump (Located under Cab) (1) Charge Pressure Tap (2) Pressure Tap for "MB" rear rotating group. (3) Pressure Tap for "MC" front rotating group. | |
| Illustration 2 | g03386280 |

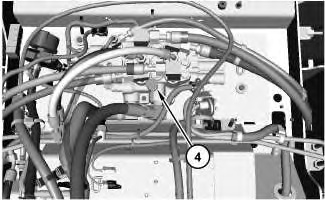

Work Tool Control Valve (Located under Cab on back firewall) (4) System Pressure Tap | |
| Illustration 3 | g03386300 |
SOS (Scheduled Oil Sample) (5) SOS Port. | |
| Illustration 4 | g03386387 |

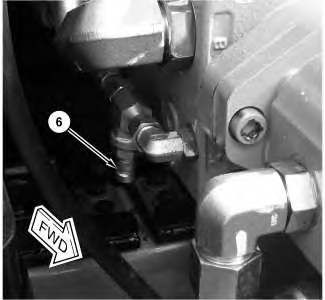

Standard Flow Load Sensing Pressure (Located on side of Implement Pump) for models: 246D, 262D, 272D, 277D, 279D, 287D, 289D, 297D, and 299D (6) Standard Flow Load Sensing Pressure. | |
| Illustration 5 | g03386846 |

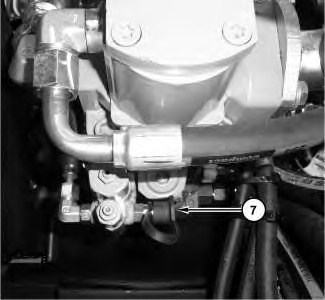

High Flow Load Sense Pressure (Located under the Implement Pump) for models: 246D, 262D, 272D, 272D XHP, 277D, 279D, 287D, 289D, 297D, 297D XHP, 299D, and 299D XHP (7) High Flow Load Sense Pressure. | |
