259D Skid Steer Loaders Engine Supplement – Idler – Remove and Install – Single Flange

Removal Procedure

Start By:

1. Remove the track.

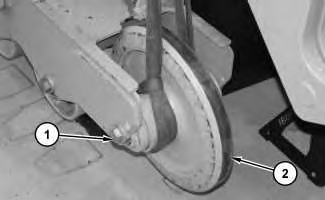

Illustration 1	g01545333

1. Attach a suitable lifting device to track idler (2). The weight of track idler (2) is approximately 41 kg (90 lb).

2. Remove bolts (1) and remove track idler (2) .

Installation Procedure

Illustration 2	g01545333

1. Attach a suitable lifting device to track idler (2). The weight of track idler (2) is approximately 41 kg (90 lb).

2. Position track idler (2) into position. Install bolts (1) and install track idler (2) .

End By: Install the track.
