259D Skid Steer Loaders Engine Supplement – Engine Enclosure – Remove and Install

Removal Procedure

------ WARNING! ------

At operating temperature, the engine coolant is hot and under pressure.

Steam can cause personal injury.

Check the coolant level only after the engine has been stopped and the fill cap is cool enough to touch with your bare hand.

Remove the fill cap slowly to relieve pressure.

Cooling system conditioner contains alkali. Avoid contact with the skin and eyes to prevent personal injury.

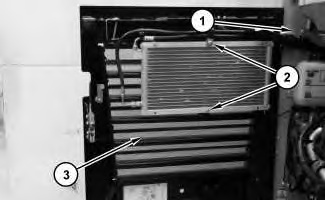

    Illustration 1g03359153

  1. Disconnect harness assemblies (1). Remove bolts (2) and relocate air conditioning condenser out of the way. Remove engine enclosure (3) .

Installation Procedure

  1. Install engine enclosure (3) in the reverse order of removal.
