259D Compact Track Loader – Electronic Control Module (ECM) – Configure

Follow these instructions to get to the configuration screen:

  1. Connect the communications adapter and the computer to the diagnostic service tool connector.

  1. Start the Caterpillar Electronic Technician (ET).

  1. Go to the "Service" Menu. Select "Configuration". Click "OK". Certain operations or characteristics can be changed.

Configuration Screen

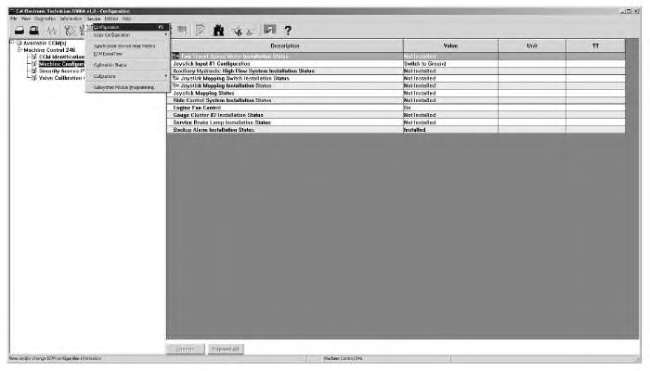

Illustration 1g01355344

Typical Configuration screen

Status Selection

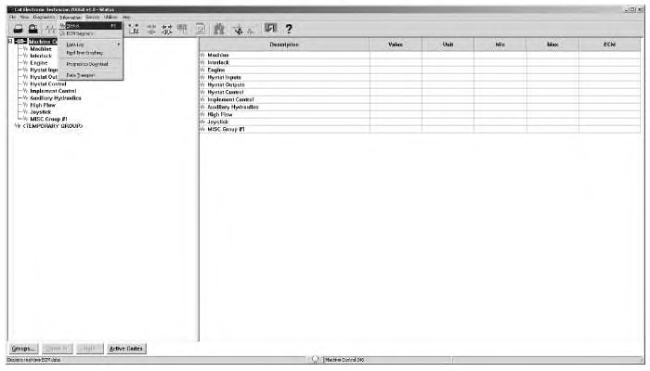

Illustration 2g01355345

Typical Status screen
