259D Compact Track Loader – Battery and Wiring Group

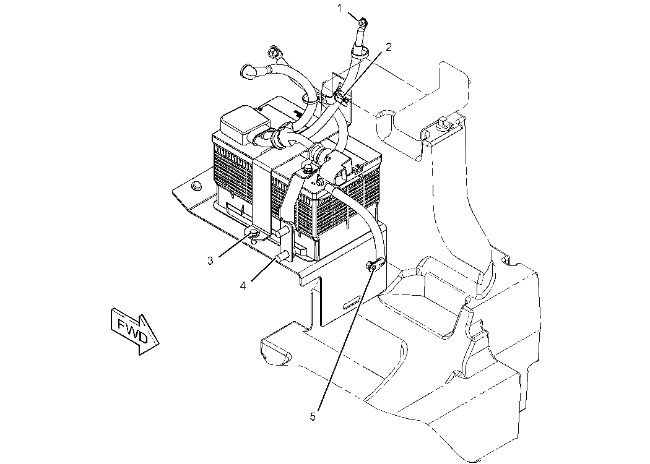

Illustration 1g03383681

Table 1
Specification for 361-6386 Battery and Wiring Gp
Item     Qty     Part     Specification Description
1     1     5C-7261 Nut     Torque to 8.5 ± 0.5 N·m (75.2 ± 4.4 lb in).
2     1     5C-9553 Bolt     Torque to
6 ± 1 N·m (53 ± 9 lb in).
3     1     7X-2537 Bolt     Torque to
9 ± 1 N·m (80 ± 9 lb in).
4     2     141-5453 Bolt     Torque to
80 ± 15 N·m (59 ± 11 lb ft).
5     1     -     Torque to
35 ± 3 N·m (26 ± 2 lb ft).

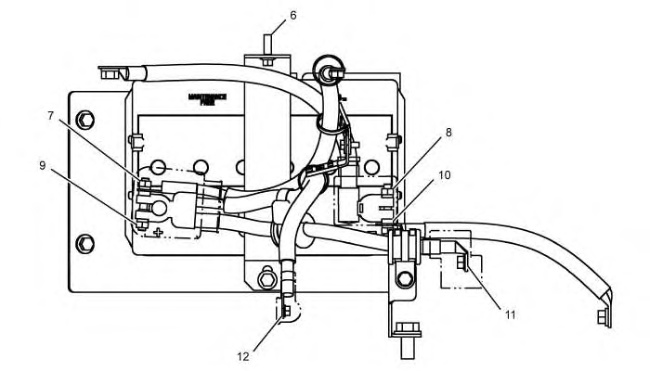

Illustration 2g03383682

Top view

Table 2
Item     Qty     Part     Specification Description
6     1     266-3315 Bolt     Torque to
25 ± 5 N·m (221 ± 44 lb in).
7     -     -     Torque to
10.5 ± 0.5 N·m (92.9 ± 4.4 lb in).
8     -     -     Torque to
7.2 ± 1.6 N·m (63.7 ± 14.2 lb in).
9     -     -     Torque to
7.2 ± 1.6 N·m (63.7 ± 14.2 lb in).
10     -     -     Torque to
15 ± 3 N·m (133 ± 27 lb in).
11     -     -     Torque to
9.8 to 11.0 N·m (86.7 to 97.4 lb in).
12     -     -     Torque to
5.9 to 9.8 N·m (52.2 to 86.7 lb in).
