259D Compact Track Loader – Battery and Battery Cable – Separate and Connect

Removal Procedure

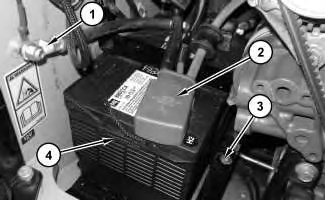

Illustration 1	g03358586

1. Remove negative battery cable (1) .

2. Disconnect positive battery cable (2) .

3. Remove bracket (3) . Remove battery (4) . The weight of battery (4) is approximately 23 kg (50 lb).

Installation Procedure

1. Install battery (4) in the reverse order of removal.

   1. Tighten positive battery cable (2) to a torque of 7 ± 2 N·m (62 ± 18 lb in).

   2. Tighten negative battery cable (1) to a torque of 7 ± 2 N·m (62 ± 18 lb in).
