259D Compact Track Loader – Alternator – Remove and Install

Removal Procedure

1. Refer to Operation and Maintenance Manual, "Belts - Inspect/Adjust/Replace".

2. Refer to Operation and Maintenance Manual, "Battery or Battery Cable - Inspect/Replace".

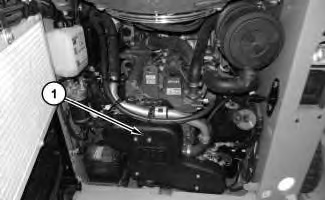

Illustration 1	g03341869

3. Remove cover (1) .

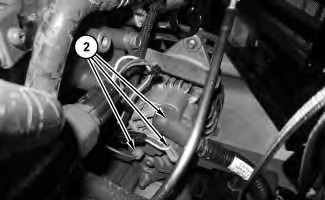

Illustration 2	g03341876

4. Disconnect harness assemblies (2) .

Illustration 3	g03341991

5. Loosen bolt (3). Remove belt (4), remove bolt (5), and alternator (6) .

Installation Procedure

1. Install alternator (6) in the reverse order of removal.
