C7 Industrial Engines Disassembly and Assembly – Crankshaft – Remove

Removal Procedure

Start By:

Remove the flywheel housing. Refer to Disassembly and Assembly, “Flywheel Housing – Remove and Install”.
Remove the engine oil pump. Refer to Disassembly and Assembly, “Engine Oil Pump – Remove”.
Remove the front housing. Refer to Disassembly and Assembly, “Housing (Front) – Remove”.

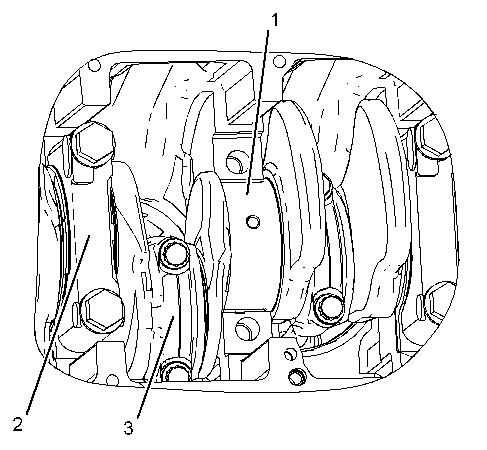

  1. Remove main bearing caps (2) .



  1. Remove connecting rod caps (3) .



  1. Put identification marks on the gear train for installation purposes. Attach a suitable lifting device to each end of crankshaft (1) . Carefully remove crankshaft (1) from the cylinder block. The weight of crankshaft (1) is approximately 60 kg (132 lb).
