26SI Series Alternator – Alternator

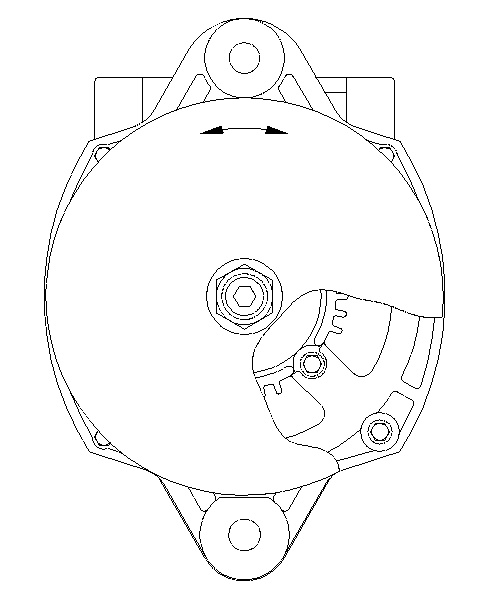

Illustration 1 g00624846

Front View of the 30-SI Alternator

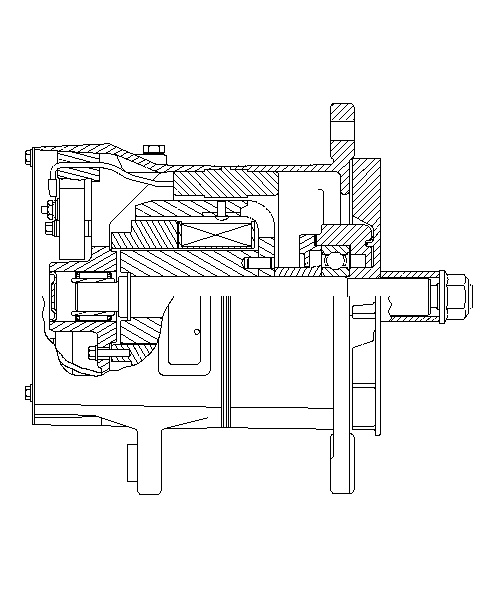

Illustration 2 g00624845

Side View of the 30-SI Alternator

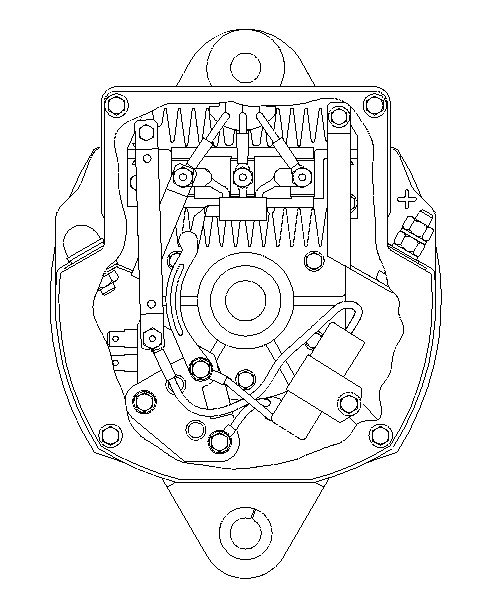

Illustration 3 g00624843

Rear View of the 30-SI Alternator

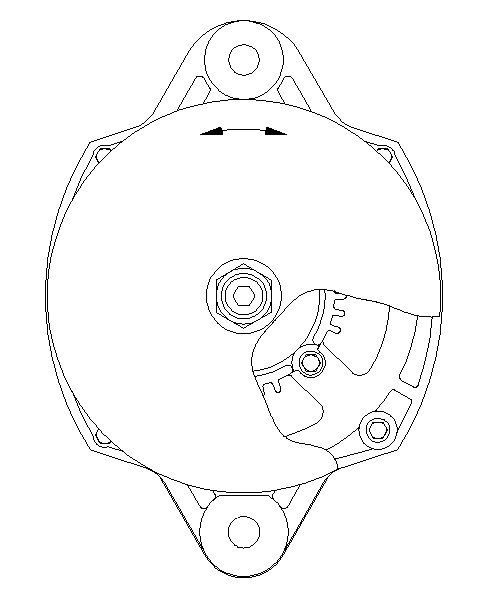

Illustration 4 g00659616

Front View of the 34-SI Alternator

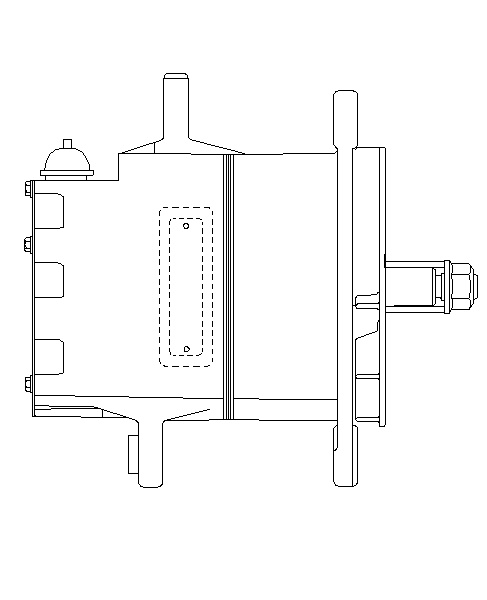

Illustration 5 g00659997

Side View of the 34-SI Alternator

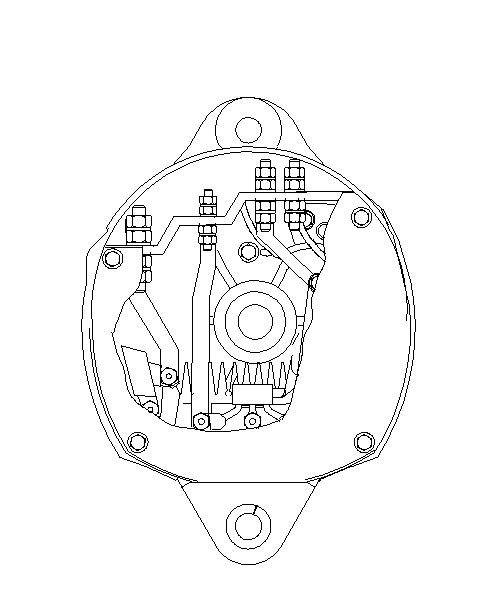

Illustration 6 g00660002

Rear View of the 34-SI Alternator

Table 1
Specifications for 30-SI Alternators
Part Number
Remanufactured Part Number
4N-3987
OR-5204
4N-3986
OR-5203
114-2401
OR-8997
9X-7803
OR-3749
8C-6163
OR-1699
Voltage Rating     32V     24V     24V     24V     12V
Current     60A     60A     75A     100A     105A
Application     Heavy Duty     Heavy Duty     Heavy Duty     Heavy Duty     Heavy Duty
Approved for Marine Use     Yes     Yes     No     No     Yes
Weight     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)
Polarity     Negative Ground
Insulated Case
Negative Ground
Insulated Case
Negative Case Ground     Negative Case Ground     Negative Ground
Insulated Case
Minimum Full Load Current (Cold) at 5000 rpm     60A     54A     67.5A     94A     96A
Minimum Full Load Current (Cold) at 1500 rpm     20A     19A     26A (1)  (2)     9A (1) (3)     42A
Turn-on Speed     2000 rpm     2600 rpm     3000 rpm     2600 rpm     2700 rpm
Output Voltage     36.6 ±1.5 V     28 ±1 V     27.5 ±1.0 V     28 ±1 V     14 ±0.5 V
Rotation  (4)     CW
CCW
CW
CCW
CW
CCW
CW
CCW
CW
CCW
( 1 ) Minimum Full Load Current (Cold) at 2000 rpm
( 2 ) The minimum speed of the alternator should be 1800 rpm at low engine idle.
( 3 ) The minimum speed of the alternator should be 2300 rpm at low engine idle.
( 4 ) The rotation is viewed from the pulley.
Table 2
Specifications for 34-SI Alternators
Part Number     169-4319     167-7812     165-5140     167-7816
Voltage Rating     24V     24V     24V     12V
Current     75A     75A     100A     110A
Application     Heavy Duty
Pad Mount
Heavy Duty     Heavy Duty     Heavy Duty
Approved for Marine Use     Yes     Yes     Yes     Yes
Weight     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)     11.9 kg (26.2 lb)
Polarity     Negative Ground
Insulated Case
Negative Ground
Insulated Case
Negative Ground
Insulated Case
Negative Ground
Insulated Case
Minimum Full Load Current (Cold) at 5000 rpm     67.5A     67.5A     94A     99A
Minimum Full Load Current (Cold) at 1500 rpm     26A (1) (2)     26A (1) (2)     9A (1) (2)     42A
Turn-on Speed     3000 rpm     3000 rpm     2600 rpm     2700 rpm
Output Voltage     28 ±1 V     28 ±1 V     28 ±1 V     14 ±1 V
Rotation  (3)     CW
CCW
CW
CCW
CW
CCW
CW
CCW
( 1 ) Minimum Full Load Current (Cold) at 2000 rpm
( 2 ) The minimum speed of the alternator should be 1800 rpm at low engine idle.
( 3 ) The rotation is viewed from the pulley.
Table 3
Torque Specifications for the 30-SI Alternator
Part Number
Remanufactured Part Number
4N-3987
OR-5204
4N-3986
OR-5203
114-2401
OR-8997
9X-7803
OR-3749
8C-6163
OR-1699
Pulley Nut     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)
Cover for the Rectifier     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)
Cover Plate
Regulator and Mounting Plate
Heat Sink
3 N·m (27 lb in)     3 N·m (27 lb in)     3 N·m (27 lb in)     3 N·m (27 lb in)     3 N·m (27 lb in)
+ Battery Terminal     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)
– Battery Terminal     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)
“R” Terminal
Nut for the Regulator Stud
2 N·m (18 lb in)     2 N·m (18 lb in)     2 N·m (18 lb in)     2 N·m (18 lb in)     2 N·m (18 lb in)
Nut for the Hex Mounting Bolt
Bolt for the Adjusting Lug
88 N·m (65 lb ft)     88 N·m (65 lb ft)     88 N·m (65 lb ft)     88 N·m (65 lb ft)     88 N·m (65 lb ft)
Frame Bolts     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)
Ground Screw     6 N·m (55 lb in)     6 N·m (55 lb in)     6 N·m (55 lb in)     6 N·m (55 lb in)     6 N·m (55 lb in)
Table 4
Torque Specifications for the 34-SI Alternator
Part Number     169-4319     167-7812     165-5140     167-7816
Pulley Nut     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)     102 ± 7 N·m (75 ± 5 lb ft)
Cover for the Rectifier     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)     5.3 N·m (47 lb in)
Cover Plate
Regulator and Mounting Plate
Heat Sink
3 N·m (27 lb in)     3 N·m (27 lb in)     3 N·m (27 lb in)     3 N·m (27 lb in)
+ Battery Terminal     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)     7.1 ± .8 N·m (62.8 ± 7.1 lb in)
– Battery Terminal     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)     6.2 ± .6 N·m (54.9 ± 5.3 lb in)
“R” Terminal
Nut for the Regulator Stud
2 N·m (18 lb in)     2 N·m (18 lb in)     2 N·m (18 lb in)     2 N·m (18 lb in)
Nut for the Hex Mounting Bolt
Bolt for the Adjusting Lug
88 N·m (65 lb ft)     88 N·m (65 lb ft)     88 N·m (65 lb ft)     88 N·m (65 lb ft)
Frame Bolts     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)     6.2 N·m (55 lb in)
Ground Screw     6 N·m (55 lb in)     6 N·m (55 lb in)     6 N·m (55 lb in)     6 N·m (55 lb in)

The results for a 12 volt 30-SI and 34-SIAlternator’s rotor field winding test at 27 °C (80 °F) are in the following list:

  • 5.5 to 9.0 Amperes

  • 1.4 to 2.1 Ohms

The results for a 24 volt 30-SI and 34-SIAlternator’s rotor field winding test at 27 °C (80 °F) are in the following list:

  • 2.9 to 3.6 Amperes

  • 6.9 to 8.1 Ohms

The results for a 32 volt 30-SI Alternator’s rotor field winding test at 27 °C (80 °F) are in the following list:

  • 1.4 to 1.9 Amperes

  • 17.0 to 21.4 Ohms

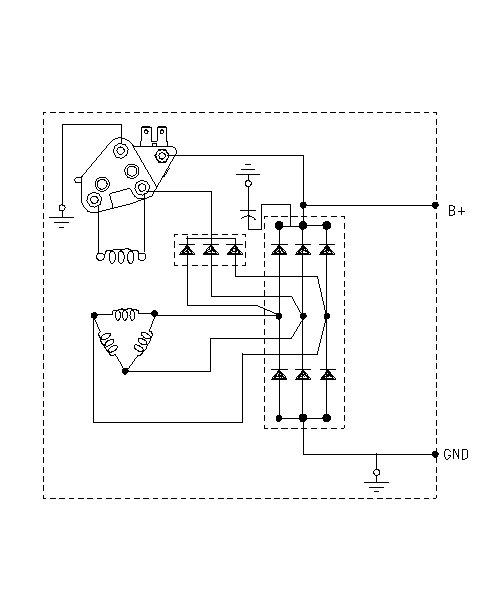

Illustration 7 g00650373

30-SI Alternator Schematic (Negative Ground Model)

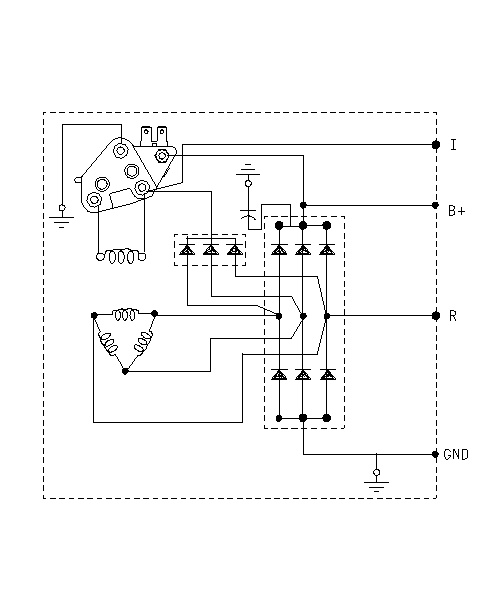

Illustration 8 g00624983

34-SI Alternator Schematic (Negative Ground Model)

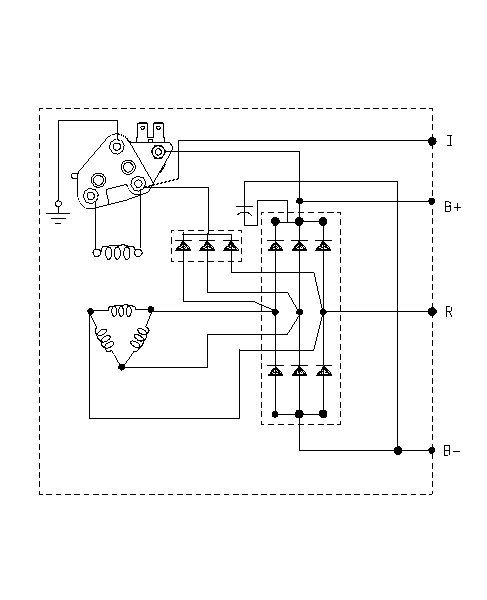

Illustration 9 g00625062

34-SI Alternator Schematic (Insulated Model)
