3208 INDUSTRIAL ENGINE – Engine Design

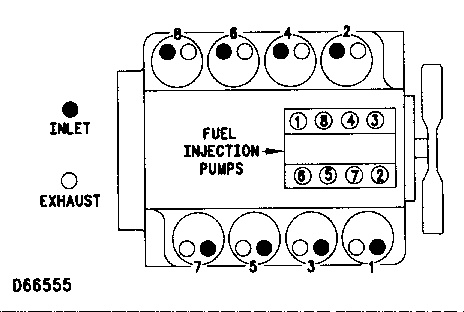

Cylinder, Valve And Injection Pump Location

Bore … 114.3 mm (4.5 in)

Stroke … 127.0 mm (5.0 in)

Number Of Cylinders … 8

Cylinder Arrangement … 90 degrees V-block

Firing Order (Injection Sequence) … 1,2,7,3,4,5,6,8

Direction Of Rotation (As Seen From Flywheel End) … Counterclockwise
