3208 – Flywheel Housing Runout

Face Runout (Axial Eccentricity) Of The Flywheel Housing:

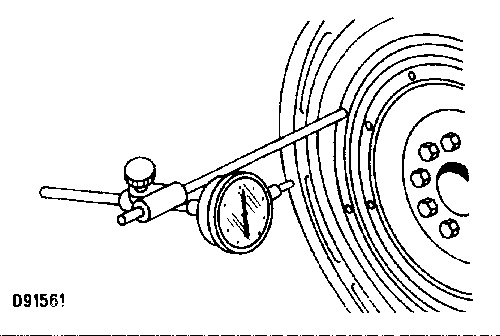

8T5096 Dial Indicator Group Installed

1. Fasten the 8T5096 Dial Indicator Group to the crankshaft flange so the anvil of the indicator will touch the face of the flywheel housing.

2. Put a force on the crankshaft toward the rear before reading the indicator at each point.

3. With dial 8T5096 Dial Indicator Group set at 0.00 mm (.000 in) at location (A), turn the crankshaft and read the 8T5096 Dial Indicator Group at locations (B), (C) and (D).

4. The difference between lower and higher measurements taken at all four points must not be more than 0.25 mm (.010 in), which is the maximum permissible face run out (axial eccentricity) of the flywheel housing.
