26SI Series Alternator – Magnetic Pickup

7W3354 And 5N9076

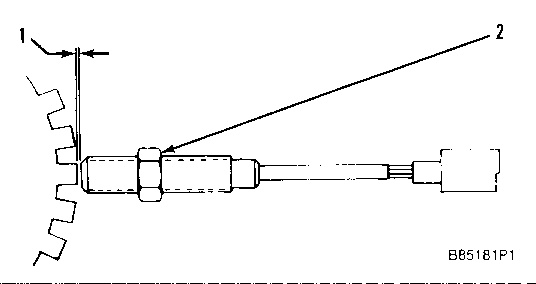

(1) Distance between end of magnetic pickup and gear (7W3354) … 0.10 to 0.75 mm (.004 to .030 in)

(1) Distance between end of magnetic pickup and gear (5N9076) … 0.30 to 0.75 mm (.012 to .030 in)

NOTE: This distance is set by turning magnetic pickup into threads until magnet is against the gear tooth while the engine is stopped. Now back magnetic pickup out 1/3 ± 1/10turn and tighten nut as follows.

(2) Nut. Tighten nut to a torque of … 45 ± 7 N·m (33 ± 5 lb ft)
