6N3161 12V (Motorola Number 8RD2018)
Polarity is negative ground or insulated.
Voltage setting range … 13.2 to 14.4 V

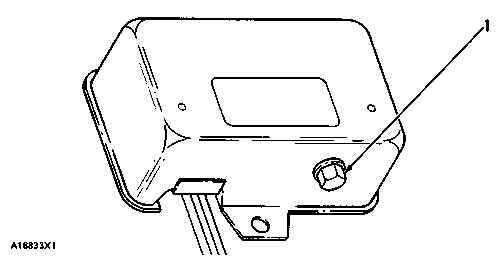

(1) Remove cap to adjust voltage.
Turn the adjustment screw clockwise to increase voltage. There are five adjustment positions.
Position 1 … 14.2 to 14.7 V
Position 2 … 14.1 ± .2 V
Position 3* … 13.8 ± .2 V
Position 4 … 13.5 ± .2 V
Position 5 … 13.2 ± .2 V
*
6N3160 24V (Motorola Number 8RD3019)
Polarity is negative ground or insulated.
Voltage setting range … 26.8 to 29.2 V
(1) Remove cap to adjust voltage.
Turn the adjustment screw clockwise to increase voltage. There are five adjustment positions.
Position 1 … 29.25 ± .35 V
Position 2 … 28.6 ± .3 V
Position 3* … 28.0 ± .3 V
Position 4 … 27.4 ± .3 V
Position 5 … 26.8 ± .3 V
*
