Air Filter Inspection

Visually inspect the filter for damage and failures in the filter seal, gasket, and outer cover before cleaning the filters. Do not use any failed filters or any damaged filters. PowerCore air filters require inspection of the beads of glue for damage and inspection of the filter paper for damage.

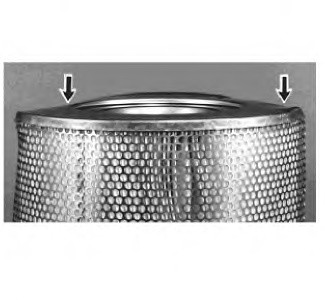

Illustration 8 g01158840

Typical damage to an axial air filter element

Do not use this air filter again.

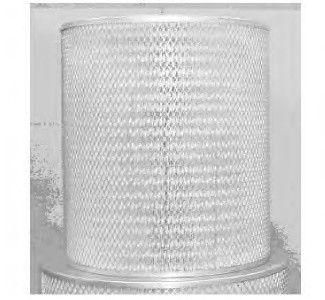

Illustration 9 g01158864

Typical example of a reusable axial air filter element

Reuse this air filter until a replacement can be installed.


Illustration 10 g01158870

Typical damage to an air filter element with a radial seal.

Do not use this air filter again.


Illustration 11 g01158874

This gasket will give a good seal.

Reuse this air filter until a replacement can be installed.

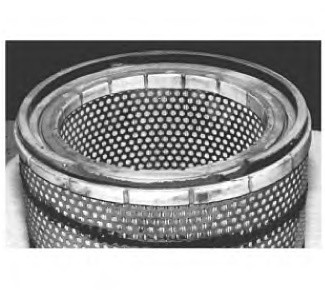

Illustration 12 g01158877

This gasket is badly damaged.

Do not use this air filter again.

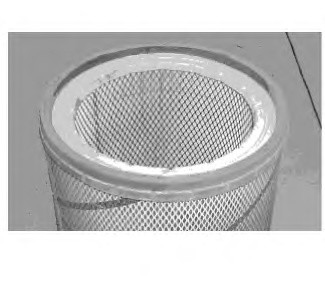

Illustration 13 g01158878

A typical example of a reusable gasket for an air filter with an axial seal.

Reuse this air filter until a replacement can be installed.

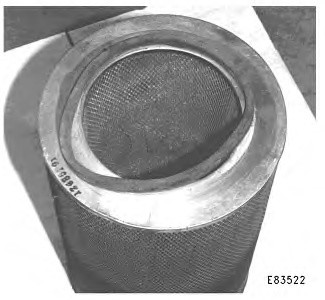

Illustration 14 g01158879

This gasket is badly damaged.

Do not use this air filter again.

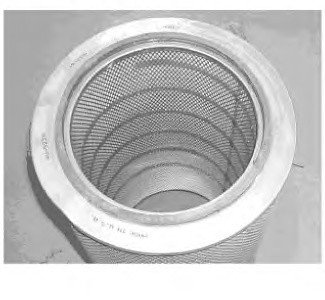

Illustration 15 g01158880

A typical example of a reusable air filter element with an axial seal.

Reuse this air filter until a replacement can be installed.

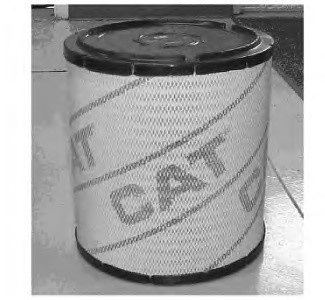

Illustration 16 g01158882

A typical example of a reusable air filter element with a radial seal.

Reuse this air filter until a replacement can be installed.

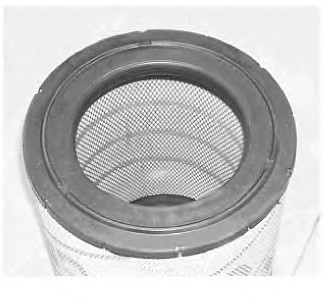

Illustration 17 g01158884

A typical example of a reusable air filter element with a radial seal.

Reuse this air filter until a replacement can be installed.

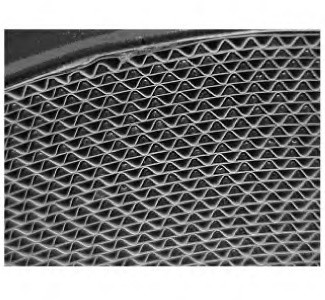

Illustration 18 g01158885

A typical example of the beads of glue that are on a reusable PowerCore air filter with a radial seal.

Reuse this air filter until a replacement can be installed.
